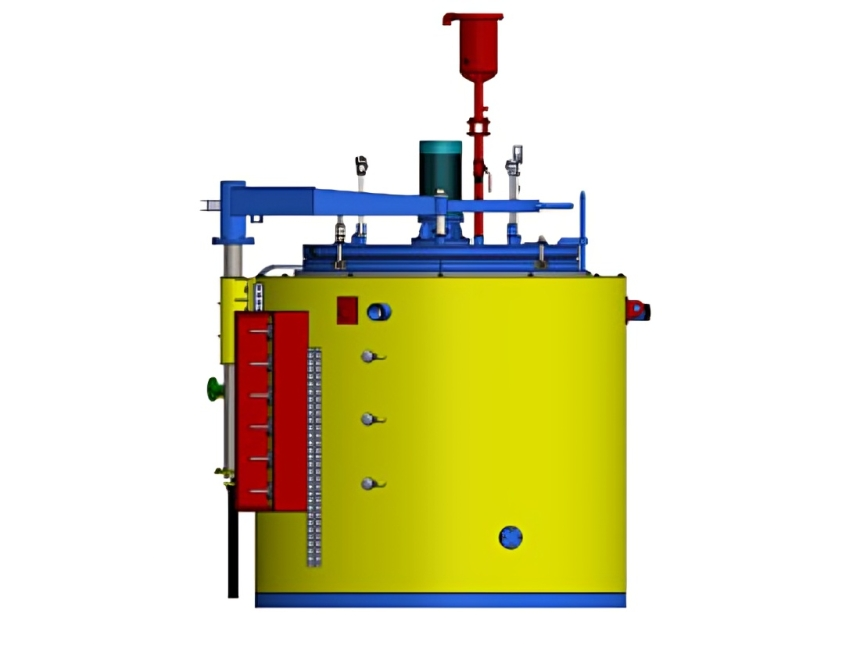

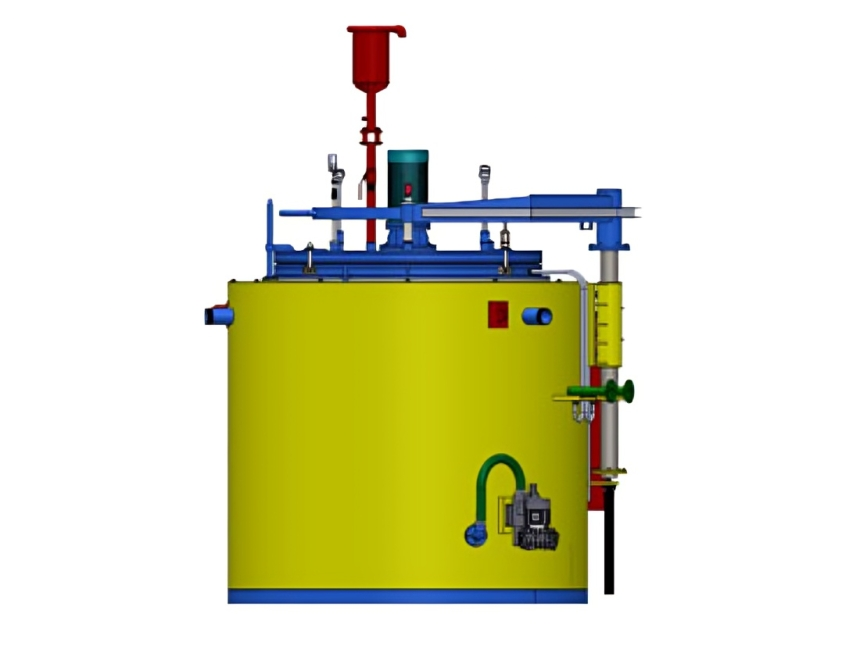

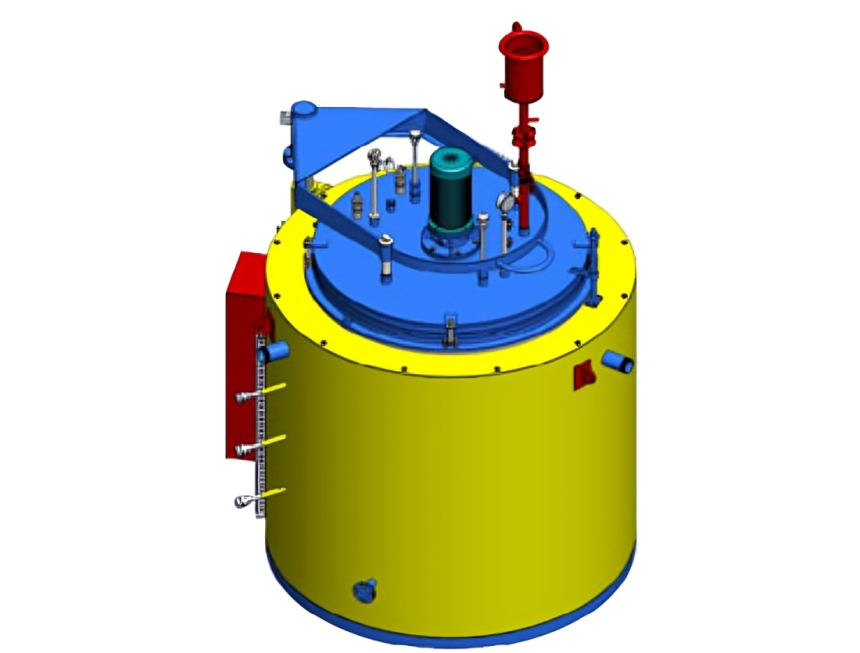

Pit Type Gas Nitriding Furnaces

We are Manufacturer, Supplier of Exporter of Pit Type Gas Nitriding Furnaces and our setup is situated in Pune, Maharashtra, India.

Types of Furnaces

Pit Type Gas Nitriding Furnaces, Pit Type Gas Carburizing Furnaces, Pit Type Tempering Furnace

Process

Gas Nitriding/ Nitro-Carburizing - Nitriding+ Oxidation - Case Carburizing/ Hardening - Tempering/ Stress Relieving

Specification :
  • + 7" HMI+PLC
  • + Scada system
  • + Temperature PID controller
  • + System Heating
  • + Thyristor Controller
  • + CP-Carbon Controller
  • + Door Up-Down Hydraulic Power Pack
  • + Fibrovac lining work
Applications :
  • + Crankshafts
  • + Aluminium Extrusion Die
  • + Fuel Injectors
  • + Piston Rings
  • + Gears
Technical Specification :
Standard Sizes*ModelDiameterHeightCapacityPower
Working Zone Dimensions
SRTS-40/60400 mm600 mm200 kg18 kw
SRTS-60/120600 mm1200 mm800 kg36 kw
SRTS-70/120700 mm1200 mm900 kg39 kw
SRTS-80/120800 mm120 mm1000 kg54 kw
SRTS-100/1501000 mm1200 mm1500 kg80 kw
SRTS-135/9001350 mm900 mm1200 kg60 kw
